Ventilating Doors

This product by DLP Industries is an operational window insert/door combo. When the window is open, fresh air is introduced into the home, eliminating the need for a screen door.

  • Perfect for beach side residents
  • Excellent for condominium doors, patio doors, cabana bath doors,  and side garage doors
  • Replaces old jalousie style doors
  • Manufactured in Florida

Half and Full Light available in 8/0! 6/8 Doors

684_bhivent

1/2 LIGHT

mksij728

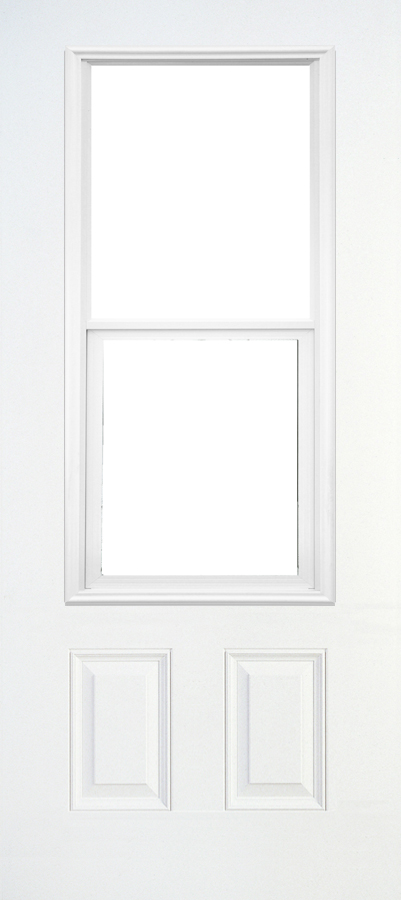

1/2 LIGHT2 PANEL

52c6ah1t

3/4 LIGHT2 PANEL

w_full

FULL LIGHT

HVHZ ImpactWBD Impact

6/8 DOORS PART NUMBER 2/0 2/4 2/6 2/8 2/10 2/10 for 6/6 3/0
1/2 LIGHT • • • • • • • • • • • • • •
1/2 LIGHT 2 PANEL     • • • • • • • • • •
3/4 LIGHT 2 PANEL       • •     • •
FULL LIGHT • • • • • • • • • • • • • •

Security

The Windsert Security Screen Option offers 24/7 security, energy efficiency, insect control, and hurricane protection.
• Premium grade High Tensile 304 Stainless Security mesh
• Insect Resistant keeping out the unwanted pest
• Allows Ventilation without compromising security

SCREEN SIZE DOOR SIZE
HALF LIGHT
WSS1436 2/0 and 2/4
WSS1836 2/6
WSS2036 2/8
WSS2236 2/10 and 3/0
3/4 LIGHT
WSS2248 2/8 and 3/0
FULL LIGHT
WSS1464 2/0 and 2/4
WSS1864 2/6
WSS2064 2/8
WSS2264 2/10 and 3/0

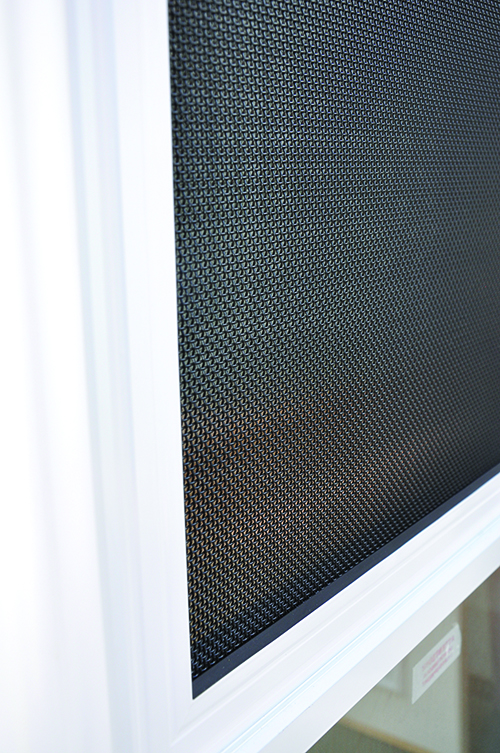

screendetail

Sizes & Glass Options

The Windsert Door System is available in many different glass options. See chart below for availability.
colors-low-e

Low E

colors-milky-white

Milky White

colors-milky-gray

Milky Gray

colors-clear

Clear

colors-obscure

Obscure

colors-gray

Grey

colors-low-e-gray

Grey Low E

colors-turtle

Turtle

Representation only.  Not actual colors. For actual samples, please contact your sales representative.

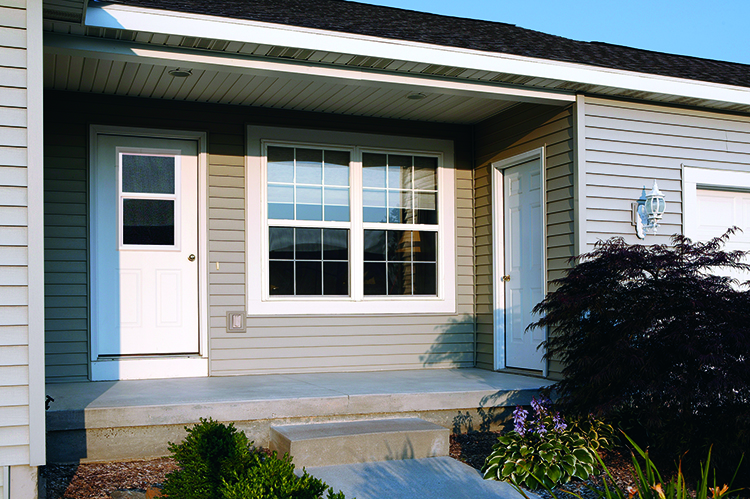

halflight-small

6/8 Doors Single Door Configurations

cl0ghxdg
xlilgoa2
607cd_2p_pp-singledoorconfig-layered
w_full
684_bhivent

Single Door with Sidelight(s) Configurations

w_half   w_full
w_full   w_half
w_half   w_full   w_half

Double Doors with Sidelight(s) Configurations

w_fullw_full
w_full
w_fullw_full
w_full
HVHZ ImpactWBD Impact
WINDSERT GLASS OPTIONS – IMPACT
Door Size Glass Size Low E Milky White Clear Obscure Gray Gray Low E Milky Gray Turtle
2/0 and 2/4 Half-Light 14 x 36 • • • • • • • • • • • • • • • •
Full-Light 14 x 64 • • • • • • • • • • • • • • • •
2/6 Half-Light 18 x 36 • • • • • • • • • • • • • • • •
Full-Light 18 x 64 • • • • • • • • • • • • • • • •
2/8 Half-Light 20 x 36 • • • • • • • • • • • • • • • •
Full-Light 20 x 64 • • • • • • • • • • • • • • • •
3/0 Half-Light 22 x 36 • • • • • • • • • • • • • • • •
3/4-Light 22 x 48 • • • • • • • • • • • • • • • •
Full-Light 22 x 64 • • • • • • • • • • • • • • • •

• HVHZ STOCK •HVHZ SPECIAL ORDER • WBD STOCK • WBD SPECIAL ORDER
All door sizes shown can be built as double door systems.
Undersized doors available.
Any non-stock glass options have a lead time of 4 weeks.
